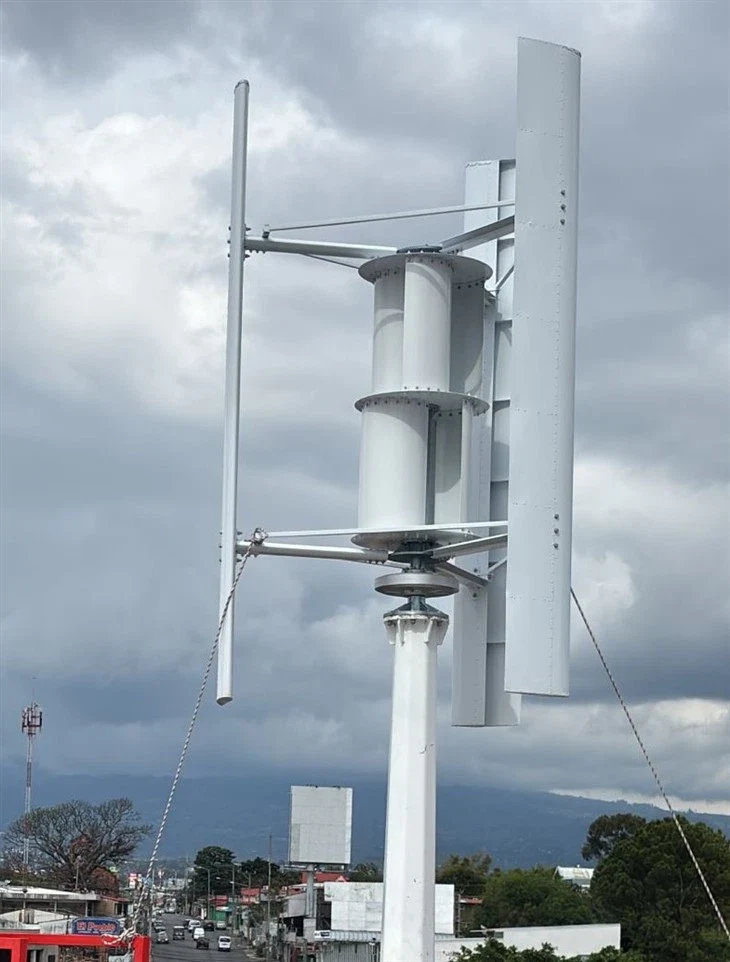

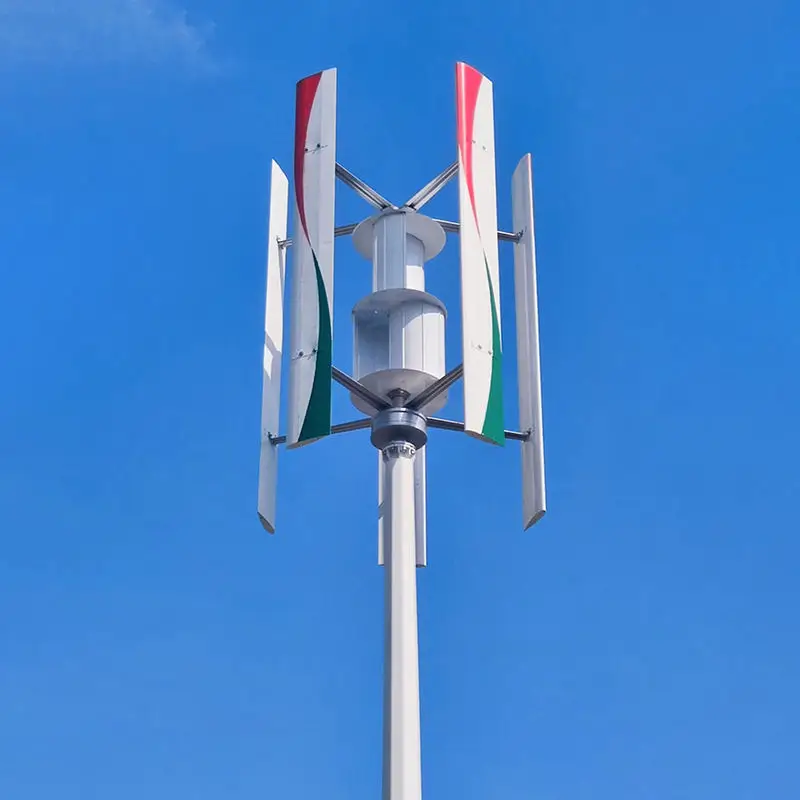

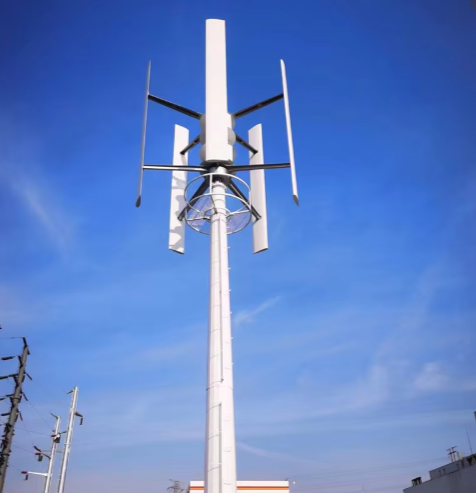

15000W (15kW) H-Series Vertical Axis Wind Turbine

Model: YM-H7600

Rated Power: 15000W (15kW)

Maximum Power: 15000W (15kW)

Startup Wind Speed: <1.5 m/s

Cut-in Wind Speed: <3 m/s

Rated Wind Speed: 11 m/s

Rated Voltage: AC220/380V

Blade Spinning Diameter: 5.2 m

Blade Height: 7.6 m

Number of Blades: 3/5

Blade Material: Fiber-reinforced plastic (GFRP) / Aluminum alloy (Alufer)

Blade Color: White/Green/Purple/Red/Yellow

Generator Type: D770

Control System: Electromagnetic control

Mounting Height: 2 - 15 m

Generator Protection Rating: IP54

Operating Temperature: -25°C ~ 50°C

Safe Wind Speed: <36 m/s

Net Weight: <600 kg
